| VIBRATORY FINISHING MACHINE |
VB-E

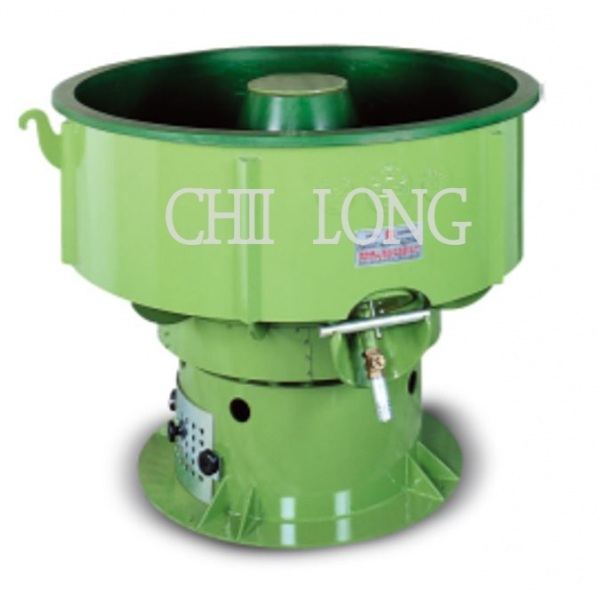

CONICAL COLUMN VIBRATORY FINISHING MACHINE
Features:
Expanded barrel opening and increased grinding volume eliminate thoroughly the forced compression pressure (impact) generated between the central role and workpieces, ensuring no denting or deformation of the workpieces.
Grinding capacity is 140% that of standard models of its kind; for large and long workpieces.
Usages:
Suitable for deburring, chamfering, and the removal of the black membrane.
| VIBRATORY FINISHING MACHINES(VB-E) | |||||
|---|---|---|---|---|---|
| Model | (Kg) Weight | (Hp) Motor | (Kw) Watt | (mm) Width | (P) Poles |
| VB-50 | 260 | 1 | 0.75 | ψ696*850H | 4P |
| VB-100 | 360 | 2 | 1.5 | ψ906*990H | 4P |
| VB-150 | 460 | 3 | 2.25 | ψ1045*1035H | 4P |
| VB-250 | 640 | 5 | 3.75 | ψ1200*1260H | 4P |
| VB-350 | 750 | 7.5 | 5.62 | ψ1340*1330H | 4P |
| VB-500 | 1070 | 10 | 7.5 | ψ1560*1560H | 4P |
| VB-750 | 1660 | 12 | 9 | ψ1730x1730H | 4P |
| VB-1000 | 2000 | 15 | 11.25 | ψ1850x1635H | 4P |
| Value for reference only. Actual product may very. | |||||
.jpg)
| VIBRATION MACHINE APPEARANCE DIMENSIONS(SUBJECT TO PHYSICAL MACHINERY) | ||||||
|---|---|---|---|---|---|---|
| MACHINE SIZE | A | B | C | D | E | F |
| 50 | 696 | 850 | 780 | 220 | 170 | 240 |
| 100 | 906 | 99 | 810 | 334 | 216 | 310 |
| 150 | 1045 | 1035 | 825 | 355 | 280 | 325 |
| 250 | 1200 | 1260 | 990 | 455 | 300 | 400 |
| 350 | 1340 | 1330 | 1025 | 550 | 320 | 450 |
| 500 | 1560 | 1360 | 1090 | 576 | 400 | 470 |
| 750 | 1730 | 1770 | 1400 | 770 | 410 | 550 |
| 1000 | 1880 | 1500 | 1300 | 810 | 445 | 670 |
| 1200 | 2080 | 1675 | 4525 | 7470 | 590 | 660 |
| 1500 | 2224 | 1485 | 1485 | 1120 | 500 | 660 |
