| TUMBLER ROTATION MACHINE |
SHB/SOB

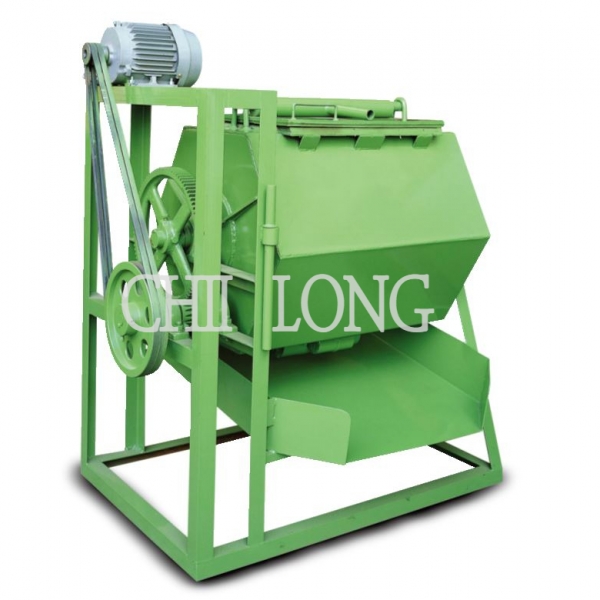

TUMBLER ROTATION MACHINE
Features:
Incorporates horizontal rotating barrel. Models featuring barrels with or without rubber interlinings are available.
Barrels with rubber interlinings resist acid, alkali, abrasion, and avoid workpiece damage. Those that have no interlining provide powerful finishing to steel balls and other steel/iron workpieces.
Providing free rotating, the titling barrel allows for easy dumping of workpieces.
A simple and user-friendly model; practical and cost-effective.
Usages:
Suitable for forged, cast, or molded workpieces that require powerful finishing.
For eliminating black membrane and black protrusions, as well as for fine grinding, chamfering, and burnishing.
| TUMBLER ROTATION GRINDING MACHINES(SHB/SOB) | |||||||
|---|---|---|---|---|---|---|---|
| Model | Weight | Motor (Hp) | R.P.M | Watt (Kw) | Width (mm) | Fill Volume (Kg) | Barrel Diameter (mm) |

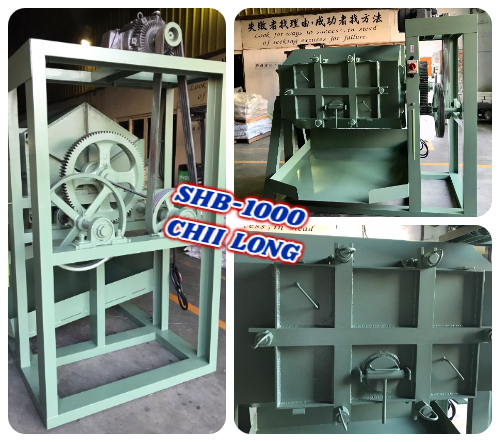

| SHB HEXAGON SINGLE TUMBLER SOB OCTAGON SINGLE TUMBLER 1000 | 50 | 1 | 40 | 0.75 | 1090 x600 x 1200 | 50L x 60% | 550 x 270 |
| 100 | 1 | 40 | 0.75 | 1280 x 850 x 1400 | 100L x 60% | 780 x 425 | |
| 150 | 2 | 40 | 0.75 | 1250 x 850 x 1400 | 150L x 60% | 720 x 515 | |
| 250 | 3 | 30 | 1.5 | 1480 x 865 x 1400 | 250L x 60% | 920 x 560 | |
| 350 | 3 | 30 | 1.5 | 1440 x 1000 x 1600 | 350L x 60% | 830 x 760 | |
| 500 | 5 | 25 | 2.25 | 1550 x 1300 x 1600 | 500L x 60% | 950 x 840 | |
| 750 | 10 | 25 | 5.63 | 2205 x 1300 x 1800 | 750L x 60% | 1400 x 1020 | |
| 1000 | 15 | 20 | 7.5 | 2310 x 1360 x 2327 | 1000L x 60% | 1550 x 1300 | |
