CHII LONG TECHNOLOGY CO., LTD.

*
CENTRIFUGAL FOR GRINDING MACHINE
*
OK-3600
CENTRIFUGAL FOR GRINDING MACHINE

Features:
Long operating life, high efficiency, high-performance finishing, modest grinding, time and labor saving, easy and quiet operation (for day and night operation).
Usages:
Adopts variable-speed/ multi-speed systems.
Digit control timer.
Grinding barrel positioning control switch.
Electric control box includes power lamp, motor operation lamp, over-current protection switch.

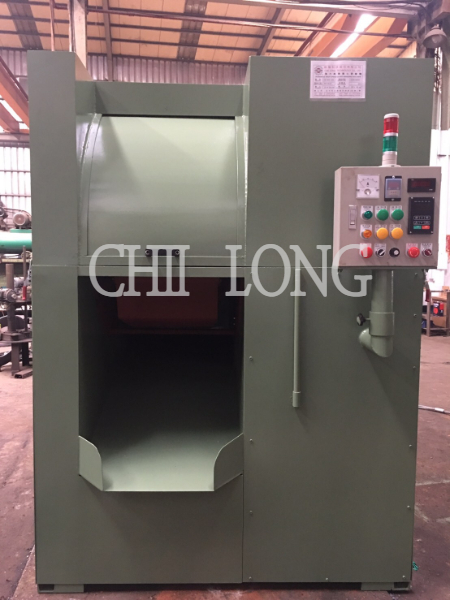

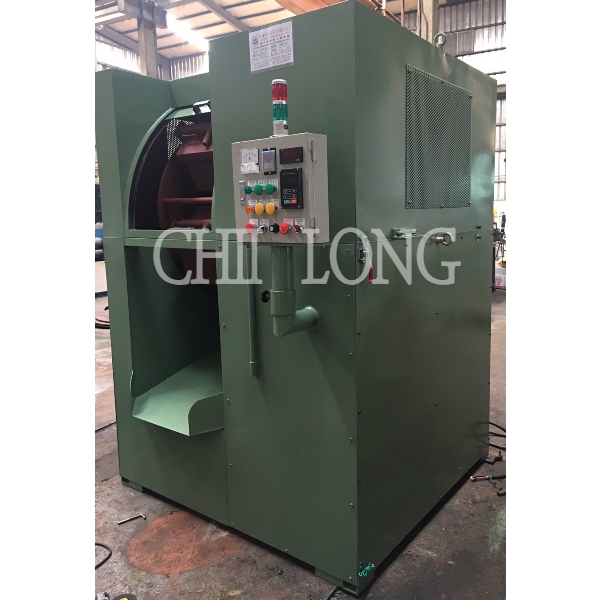

HIGH-SPEED CENTRIFUGAL GRINDING MACHINES(OK-3600)
Model Volume of Barrel Weight Motor
(Hp)
Watt
(Kw)
Width
(mm)
Fill Volume
(Kg)
(Kg)
OK-3600-20 ≒20L 900 5 3.75 1340 x 1250 x 1480 ≒20L x 60%
OK-3600-40 ≒40L 1050 5 3.75 1340 x 1250 x 1480 ≒40L x 60%
OK-3600-60 ≒60L 1150 7.5 5.62 1340 x 1250 x 1480 ≒60L x 60%
OK-3600-80 ≒80L 2160 7.5 5.62 1600 x 1600 x 1900 ≒80L x 60%
OK-3600-160 ≒160L 3300 10 7.5 1720 x 1430 x 2100 ≒160L x 60%
Value for reference only.  Actual product may vary.
