CHII LONG TECHNOLOGY CO., LTD.

*
CENTRIFUGAL FOR GRINDING MACHINE
*
STOK
CENTRIFUGAL FOR GRINDING MACHINE

Features:
Grinding time is 50% shorter than vibration time. This model is composed of a stationary barrel and rotary blades, of which the latter rotate to enable workpieces and grinding stones inside the barrel to be thoroughly stirred, to rub one another, and to achieve sophisticated grinding effect in a short period of time.
Usages :
Suitable for small workpieces.
Provides forceful grinding for deburring and chamfering, as well as for eliminating black membrane.

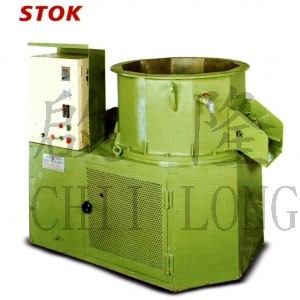

HIGH-SPEED CENTRIFUGAL GRINDING MACHINE(STOK)
Model Weight
(Kg)
Motor
(Hp)
Watt
(Kw)
Width
(mm)
Fill Volume
(Kg)
INSIDE BARREL
DIMENSION(mm)
R.P.M
STOK-50 400 5 3.75 Special Model ≒50L X 50-60% Special Model 180
STOK-150 980 7.5 5.62 Special Model ≒150L X 50-60% Special Model 180
STOK-250 1400 10 7.5 1685 X 1190 X 1370 ≒250L X 50-60% ¢820 X 485H 180
STOK-350 1850 15 11.25 1670 X 1170 X 1500 ≒350L X 50-60% ¢940 X 500H 180
Value for reference only.  Actual product may vary.
