| CENTRIFUGAL FOR GRINDING MACHINE |

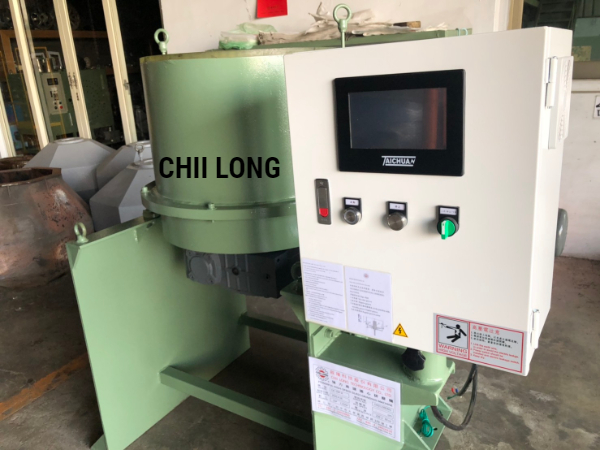

OK-50

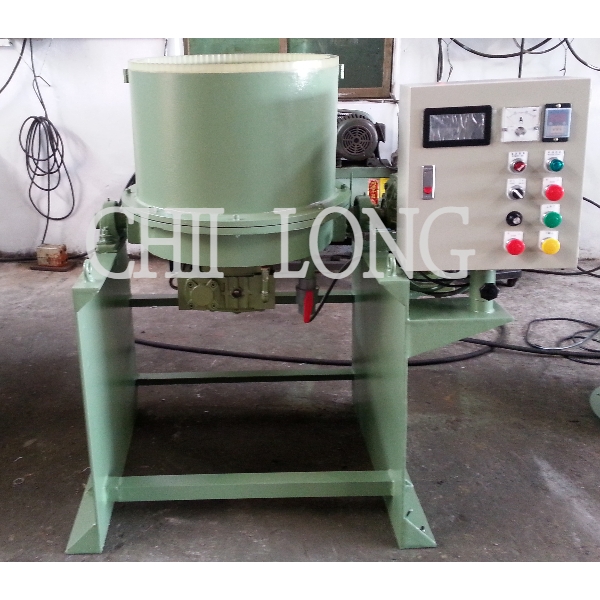

TILTING CENTRIFUGAL FOR GRINDING MACHINE
Features:
The centrifugal grinding machine is 10 times faster than the traditional grinding machine.
Offering high efficiency for de-burring, chamfering and improve the polishing of surface.
Humanity operation interface of digitize controls.
(Optional purchase of model.)
Without Manpower from beginning to end, it's completely automation.
Saving human resource by auto output work pieces from inner trough.
Using for chamfering, polishing and remove shell and oil of work pieces.
| TILTABLE CENTRIFUGAL GRINDING MACHINE(OK-350) | ||||||
|---|---|---|---|---|---|---|
| Model | Motor (Hp) | Watt (Kw) | Width (mm) | Fill Volume (Kg) | Barrel Diameter (mm) | R.P.M |
| OK-10 Automatic | 0.5 | 0.37 | 860 x 750 x 800 | 10L x 70% | Ø280 x 150H | 180 |
| OK-50 Manual | 3 | 2.25 | 920 x 985 x 1020 | 50L x 70% | Ø535 x 390H | 180 |
| OK-50 Automatic | 3 | 2.25 | 920 x 1200 x 1020 | 50L x 70% | Ø535 x 390H | 180 |
| OK-150 Automatic | 5 | 3.75 | 1200 x 1480 x 1700 | 150L x 70% | Ø700 x 330H | 180 |
| OK-250 Automatic | 7.5 | 5.625 | 1230 x 1780 x 1750 | 250L x 70% | Ø800 x 450H | 180 |
| OK-350 Automatic | 15 | 11.25 | 1230 x 1800 x 1850 | 350L x 70% | Ø930 x 530H | 180 |
