CHII LONG TECHNOLOGY CO., LTD.

*

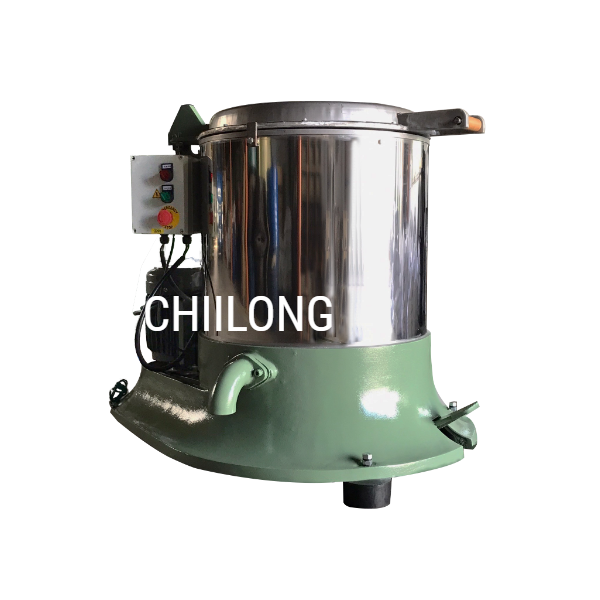

DEHYDRATING DRYING MACHINE
*
SD
Dehydration and deoiling machine (without drying function - flat cover)

Features:
Optional stepless speed change and slow start device can avoid the damage of finished products.
Purpose:
1. Degreasing - the iron and aluminum chips produced by each processing plant can throw out the oil remaining on the chip surface.
2. Dehydration - the contact surface with the product is made of SUS304. It can also be used for food dehydration, which is convenient and efficient.

脫水烘乾機(D)諸元表
 機型
  Model
重量(Kg)
     Weight
馬力(Hp)
          Motor
 功率(Kw)
Watt
機台尺寸(mm)
Width
容量
 Volume
內桶尺寸(mm)
      Barrel Diameter
 內桶高度(mm)
  Barrel Diameter
D-400 180 1  0.75   950x670x845 40Lx60%  405 320
D-510 300 2 1.5   1130x850x970 65Lx60%  505 350
D-630 430 5 3.75  1090x890x1100 130Lx60% 630  440
D-800 500 7.5 5.62  1610x1170x1150 200Lx60% 800  400
以上數值僅供參考,以實際機台為主。
