| VIBRATORY FINISHING MACHINE |
VB-A

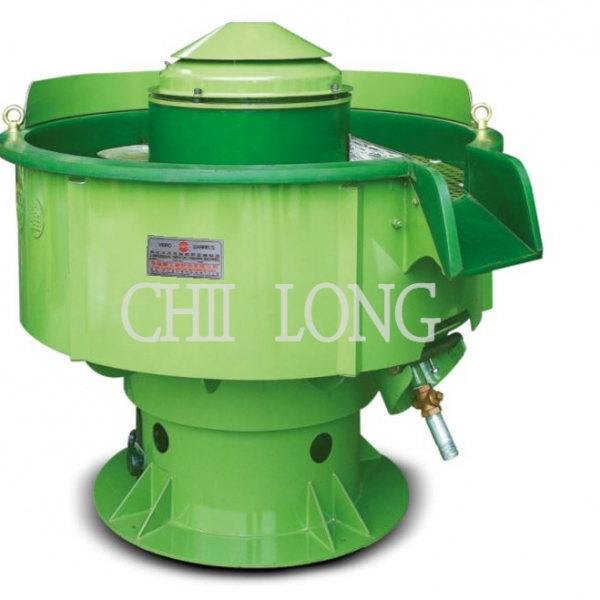

AUTO SELECTOR VIBRATORY FINISHING MACHINE
Special design: This machine is designed for easily selecting workpieces.
Features:On top of this machine is turbine access via which materials and polish move forward to the screening section (this process will not damage materials).
Usage: Suitable for workpieces that are deformed or dented easily.
| VIBRATORY FINISHING MACHINES(VB-A) | |||||
|---|---|---|---|---|---|
| Model | Weight | (Hp) Motor | (Kw) Watt | (mm) Width | (P) Poles |
| VB-100 | 360 | 2 | 1.5 | ψ906*990H | 4P |
| VB-150 | 460 | 3 | 2.25 | ψ1045*1035H | 4P |
| VB-250 | 640 | 5 | 3.75 | ψ1200*1260H | 4P |
| VB-350 | 750 | 7.5 | 5.62 | ψ1340*1330H | 4P |
| VB-500 | 1070 | 10 | 7.5 | ψ1560*1560H | 4P |
| VB-750 | 1660 | 12 | 9 | ψ1730x1730H | 4P |
| VB-1000 | 2000 | 15 | 11.25 | ψ1850x1635H | 4P |
| Value for reference only. Actual product may very. | |||||
.jpg)
| VIBRATION MACHINE APPEARANCE DIMENSIONS(SUBJECT TO PHYSICALMACHINERY) | ||||||
|---|---|---|---|---|---|---|
| MACHINE SIZE | A | B | C | D | E | F |
| 100 | 906 | 990 | 810 | 334 | 216 | 310 |
| 150 | 1045 | 1035 | 825 | 355 | 280 | 325 |
| 250 | 1200 | 1260 | 990 | 455 | 300 | 400 |
| 350 | 1340 | 1330 | 1025 | 550 | 320 | 450 |
| 500 | 1560 | 1360 | 1090 | 576 | 400 | 470 |
| 750 | 1730 | 1770 | 1400 | 770 | 410 | 550 |
| 1000 | 1880 | 1500 | 1300 | 810 | 445 | 670 |
| 1200 | 2080 | 1675 | 4525 | 7470 | 590 | 660 |
| 1500 | 2224 | 1485 | 1485 | 1120 | 500 | 660 |
