| VIBRATORY FINISHING MACHINE |
VB-G

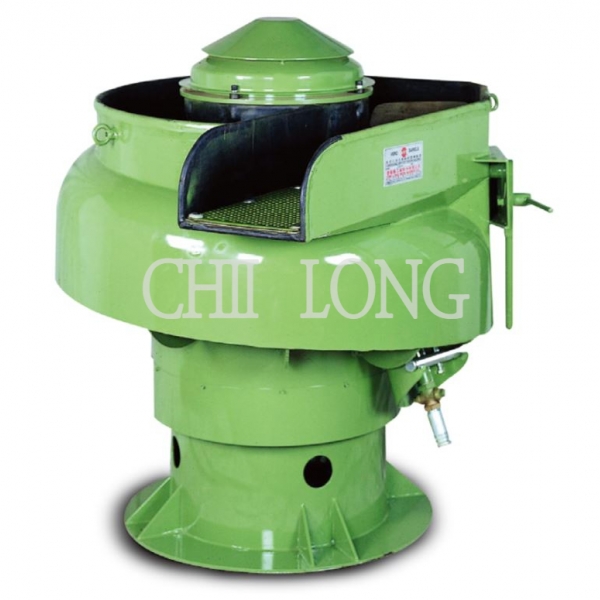

SPIRAL VIBRATORY FINISHING MACHINE
Usages:
Suitable for soft metallic surfaces like iron, steel, stainless steel, etc.
Most suitable for polishing workpieces like spoons, knife, and forks.
Features:
Have high dropping variance of barrel, the combined workpice can be separated.
| VIBRATORY FINISHING MACHINES(VB-G) | |||||
|---|---|---|---|---|---|
| Model | (Kg) Weight | (Hp) Motor | (Kw) Watt | (mm) Width | (P) Poles |
| VB-250 | 640 | 5 | 3.75 | ψ1200*1260H | 4P |
| VB-350 | 750 | 7.5 | 5.62 | ψ1340*1330H | 4P |
| VB-500 | 1070 | 10 | 7.5 | ψ1560*1560H | 4P |
| Value for reference only. Actual product may very. | |||||
.jpg)

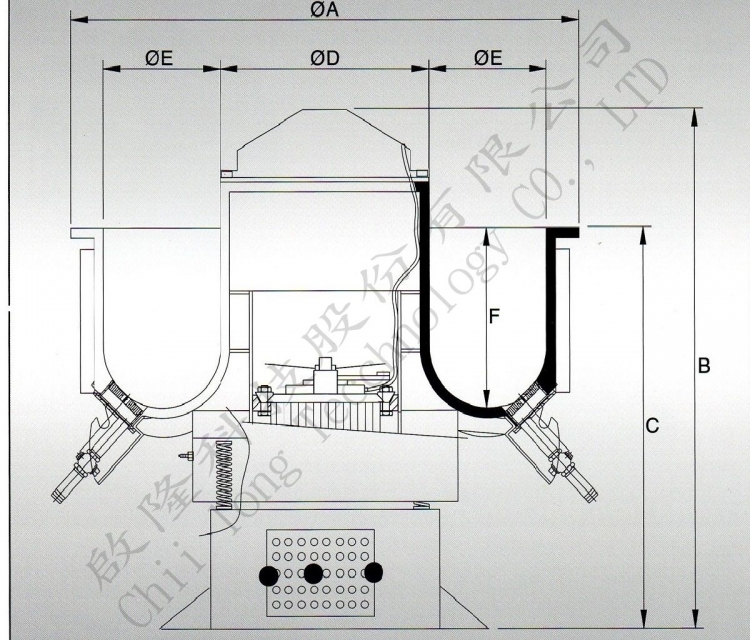

| VIBRATION MACHINE APPEARANCE DIMENSIONS(SUBJECT TO PHYSICAL MACHINERY) | ||||||
|---|---|---|---|---|---|---|
| MACHINE SIZE | A | B | C | D | E | F |
| 250 | 1200 | 1260 | 990 | 455 | 300 | 400 |
| 350 | 1340 | 1330 | 1025 | 550 | 320 | 450 |
| 500 | 1560 | 1360 | 1090 | 576 | 400 | 470 |
.jpg)
