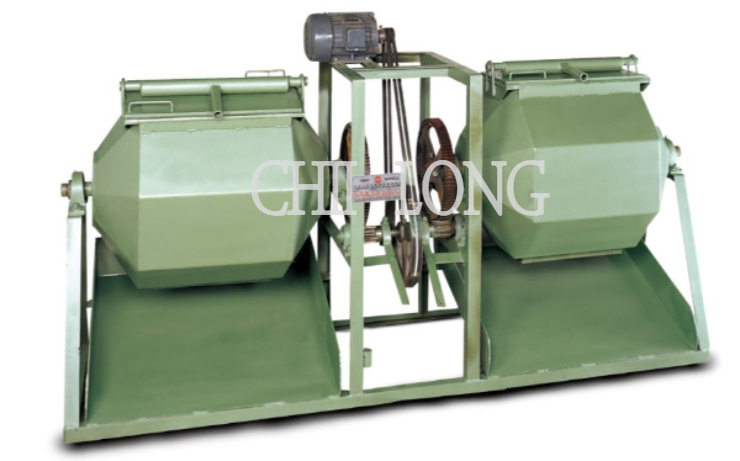

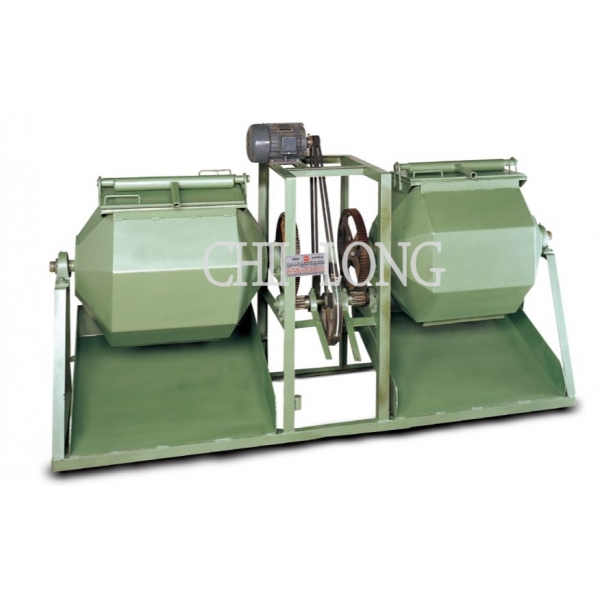

TUMBLER ROTATION MACHINE
*
DOB
TUMBLER ROTATION GRINDING MACHINES

Features:
Incorporates horizontal rotating barrel. Models featuring barrels with or without rubber interlinings are available.
Barrels with rubber interlinings resist acid, alkali, abrasion, and avoid workpiece damage. Those that have no interlining provide powerful finishing to steel balls and other steel/iron workpieces.
Providing free rotating, the titling barrel allows for easy dumping of workpieces.
A simple and user-friendly model; practical and cost-effective.
Usages:
Suitable for forged, cast, or molded workpieces that require powerful finishing.
For eliminating black membrane and black protrusions, as well as for fine grinding, chamfering, and burnishing.


TUMBLER ROTATION GRINDING MACHINES(DOB)
Model Weight Motor
(Hp)
Watt
(Kw)
Width
(mm)
Fill Volume
(Kg)
Barrel Diameter
(mm)
DHB
HEXAGON  DOUBLE TUMBLER
DOB
OCTAGON DOUBLE TUMBLER


50 1 0.75 2080 x600 x 1200 50L x 60% 550 x 270
100 2 1.5 2260 x 800 x 1400 100L x 60% 780 x 425
150 2 1.5 2400 x 850 x 1400 150L x 60% 720 x 515
250 3 2.25 2660 x 865 x 1400 250L x 60% 920 x 560
350 3 2.25 2740 x 1000 x 1700 350L x 60% 830 x 760
500 5 9.75 2960 x 1300 x 1700 500L x 60% 950 x 840
Value for reference only.  Actual product may vary.
