| VIBRATORY FINISHING MACHINE |
VB-B

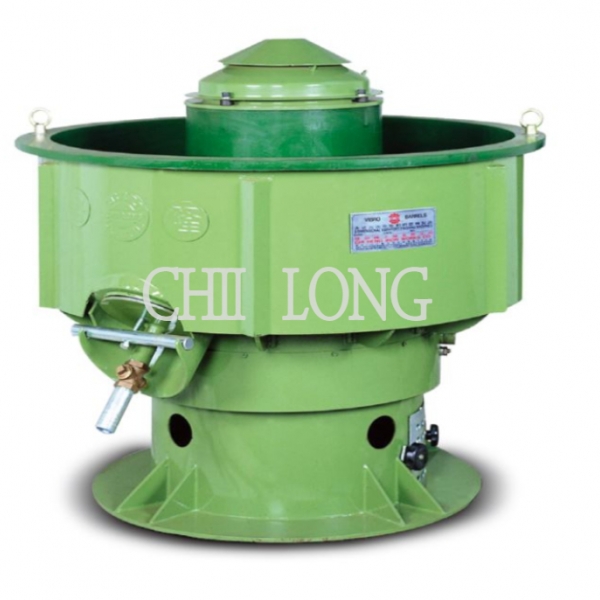

U-SHAPE VIBRATORY FINISHING MACHINE
Features: Provision of strong vibration, turning and higher-sharpening, this model is designed for polishing small workpieces.
Usages: For grinding and burnishing aluminum, aluminum alloy, iron, white iron, and zinc, magnesium alloy.
| VIBRATORY FINISHING MACHINES(VB-B) | |||||
|---|---|---|---|---|---|
| Model | (Kg) Weight | (Hp) Motor | (Kw) Watt | (mm) Width | (P) Poles |
| VB-10 | 18 | 0.25 | 0.19 | ψ350*500H | 4P |
| VB-25 | 58 | 0.5 | 0.37 | ψ570*670H | 4P |
| VB-50 | 260 | 1 | 0.75 | ψ696*850H | 4P |
| VB-100 | 360 | 2 | 1.5 | ψ906*990H | 4P |
| VB-150 | 460 | 3 | 2.25 | ψ1045*1035H | 4P |
| VB-250 | 640 | 5 | 3.75 | ψ1200*1260H | 4P |
| VB-350 | 750 | 7.5 | 5.62 | ψ1340*1330H | 4P |
| VB-500 | 1070 | 10 | 7.5 | ψ1560*1560H | 4P |
| VB-750 | 1660 | 12 | 9 | ψ1730x1730H | 4P |
| VB-1000 | 2000 | 15 | 11.25 | ψ1850x1635H | 4P |
| Value for reference only. Actual product may very. | |||||
.jpg)
| VIBRATION MACHINE APPEARANCE DIMENSIONS(SUBJECT TO PHYSICAL MACHINERY) | ||||||
|---|---|---|---|---|---|---|
| MACHINE SIZE | A | B | C | D | E | F |
| 10 | 350 | -- | 400 | 43 | 120 | 120 |
| 25 | 566 | -- | 650 | 145 | 155 | 205 |
| 50 | 696 | 850 | 780 | 220 | 170 | 240 |
| 100 | 906 | 990 | 810 | 334 | 216 | 310 |
| 150 | 1045 | 1035 | 825 | 355 | 280 | 325 |
| 250 | 1200 | 1260 | 990 | 455 | 300 | 400 |
| 350 | 1340 | 1330 | 1025 | 550 | 320 | 450 |
| 500 | 1560 | 1360 | 1090 | 576 | 400 | 470 |
| 750 | 1730 | 1770 | 1400 | 770 | 410 | 550 |
| 1000 | 1880 | 1500 | 1300 | 810 | 445 | 670 |
| 1200 | 2080 | 1675 | 4525 | 7470 | 590 | 660 |
| 1500 | 2224 | 1485 | 1485 | 1120 | 500 | 660 |
.jpg)
