CHII LONG TECHNOLOGY CO., LTD.

*

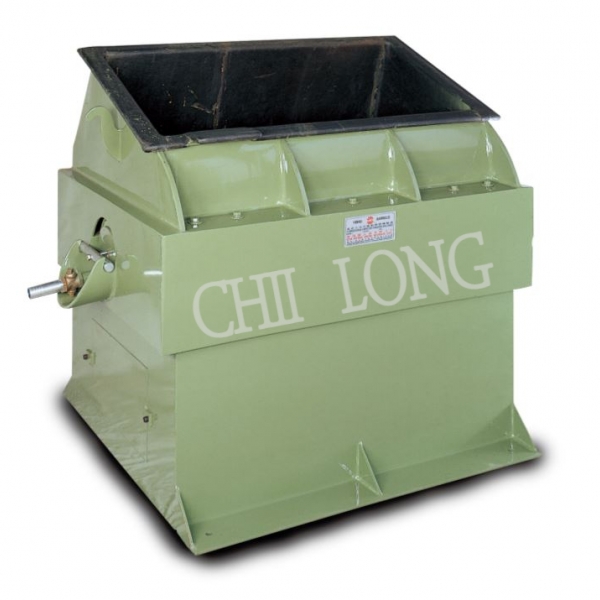

VIBRATORY FINISHING MACHINE
*
VB-C
HORIZONTAL VIBRATORY FINISHING MACHINE

Features:
Takes up little room, large capacity, and easy operation.
Strong cutting and balanced grinding.
High-frequency vibration and regular movements in all directions.
Suitable for large workpieces like long axles or any kind of disk-shaped items.

Usages:
For finishing decorative door accessories, bathroom accessories, hardware parts, silverware, hand tools, bearing parts, bicycle frames, auto/motorcycle parts, notebook computer/PDA alloy housing, and other plastic injection molded accessories.






VIBRATORY FINISHING MACHINES(VB-C)

Model
(Kg)
Weight
(Hp)
Motor
(Kw)
Watt
(mm)
Width
(mm)
Barrel Dimension
VB-100 360 2 1.5 600 x 500 x 995 500 x 400 x 430
VB-150 460 3 2.25 965 x 500 x 995 865 x 400 x 430
VB-750 1400 12 11.25 1630 x 1350 x 1400 900 x 750 x 630
VB-1000 1500 20 15 1810 x 1350 x 1400 1100 x 750 x 630
Value for reference only. Actual product may very.
